- Ergonomický ovládací prvek s možností obsluhy oběma rukama
- Optimalizovaná hydraulika pro snadné ovládání
- Dlouhá životnost preciznímu zpracování za použití robustních materiálů
- Trvale mazané spoje nevyžadují údržbu
- Speciální ventil k mimořádně přesnému spouštění
AM 22
Odolné a spolehlivé ruční paletové vozíky AM 22 jsou klasikou značky Jungheinrich a jsou ideální ke každodenní přepravě materiálů na krátkých trasách. Jejich ovládání pomocí ergonomických ovládacích prvků je přitom mimořádně snadné, vozíky můžete obsluhovat z obou stran pouze jednou rukou. Optimálně nastavená hydraulika ve spojení s chromovanými pouzdry kol a kloubů umožňuje manipulaci s nákladem s vynaložením minimálního úsilí. Tím je umožněna mimořádně ergonomická práce a současně se tím zvyšuje bezpečnost ve vaší společnosti. Použitelnost je u těchto ručních paletových vozíků zajištěna trvale mazanými spoji a bezúdržbovým hydraulickým čerpadlem se zvláštním spouštěcím ventilem. Použitá vysokopevnostní ocel a svařovaný držák oje navíc zaručují dlouhou životnost modelu AM 22. Pro bezpečnou a snadnou přepravu materiálu v jakékoliv situaci.
Vlastnosti

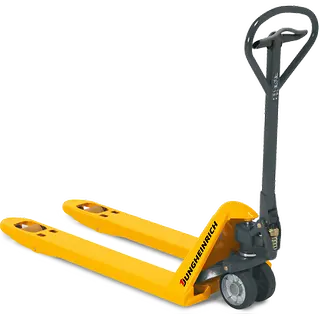

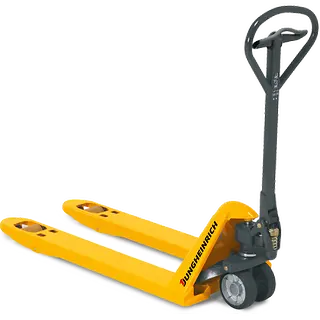

![AM22_[MAM-10245].webp](https://media-live2.prod.scw.jungheinrichcloud.com/resource/image/1514880/portrait_ratio1x1/320/320/e3c53e05ef2e8cf1f69b9913da50aa05/D6CD9308BF2908B9FF2A8CC15C3B024E/am22-mam-10245-webp.webp)
Přehled modelů
| Model | Nosnost | Výška zdvihu | Rychlost jízdy | Celková délka |
| AM 22, 520x600, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x1054, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, N-GN, NH | 2 200 kg | 122 mm | - | 1 523 mm |
| AM 22, 520x600, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 165 mm |
| AM 22, 520x902, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 320 mm |
| AM 22, 520x1054, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 424 mm |
| AM 22, 520x1150, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 520 mm |
| AM 22, 520x1207, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 577 mm |
| AM 22, 520x600, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x902, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x950, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 520 mm |
| AM 22, 520x1207, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1360, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 733 mm |
| AM 22, 520x1600, C-BV, NH | 1 500 kg | 122 mm | 0 km/h | 1 973 mm |
| AM 22, 520x1900, C-BV, NH | 1 000 kg | 122 mm | 0 km/h | 2 273 mm |
| AM 22, 520x2400, C-BV, NH | 500 kg | 122 mm | 0 km/h | 2 773 mm |
| AM 22, 520x600, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, N-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x902, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-GN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, V-GV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, N-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-BN, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x902, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x1150, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1360, C-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 733 mm |
| AM 22, 680x1600, C-BV, NH | 1 700 kg | 122 mm | 0 km/h | 1 973 mm |
| AM 22, 680x1900, C-BV, NH | 1 200 kg | 122 mm | 0 km/h | 2 773 mm |
| AM 22, 680x600, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, V-BV, NH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x950, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 520 mm |
| AM 22, 520x1207, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x600, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1360, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 733 mm |
| AM 22, 520x1600, C-BV, SH | 1 500 kg | 122 mm | 0 km/h | 1 973 mm |
| AM 22, 520x1900, C-BV, SH | 1 000 kg | 122 mm | 0 km/h | 2 273 mm |
| AM 22, 520x2400, C-BV, SH | 500 kg | 122 mm | 0 km/h | 2 773 mm |
| AM 22, 520x600, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 520x795, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 520x902, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 520x950, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 520x1054, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 520x1150, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 520x1207, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, N-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x1150, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-GN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x950, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x950, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, V-GV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x950, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, N-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-BN, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x600, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1360, C-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 733 mm |
| AM 22, 680x1600, C-BV, SH | 1 700 kg | 122 mm | 0 km/h | 1 973 mm |
| AM 22, 680x1900, C-BV, SH | 1 200 kg | 122 mm | 0 km/h | 2 273 mm |
| AM 22, 680x600, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 973 mm |
| AM 22, 680x795, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 168 mm |
| AM 22, 680x902, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 275 mm |
| AM 22, 680x950, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 323 mm |
| AM 22, 680x1054, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 427 mm |
| AM 22, 680x1150, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
| AM 22, 680x1207, V-BV, SH | 2 200 kg | 122 mm | 0 km/h | 1 523 mm |
